Overview

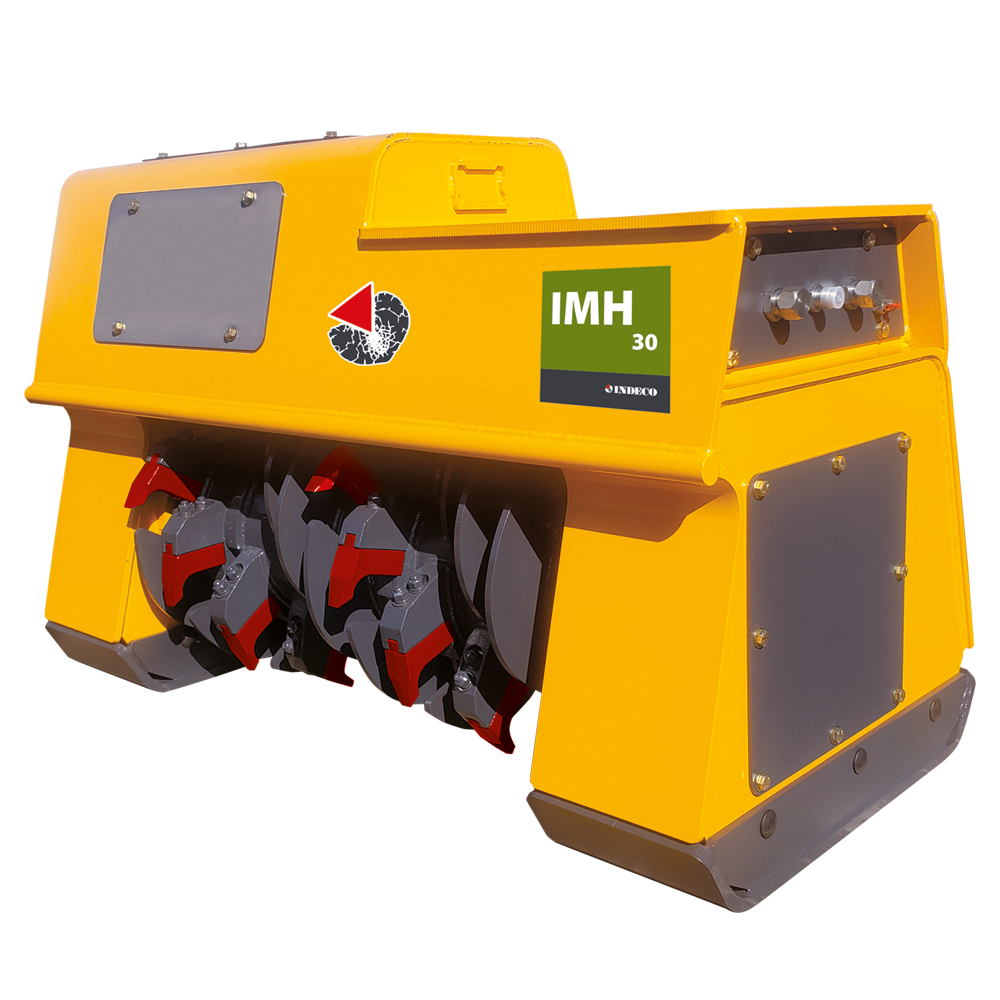

Indeco’s IMH series of hydraulically driven, boom- mounted mulching heads are specifically designed for a broad range of land clearing, site preparation, invasive vegetation species management, storm damage removal and clean-up applications.
Tailored to fit a wide range of carriers from 3 to 36 tons, the IMH series is available in a number of direct-drive and belt-driven high-performance models and features HARDOX® components and bodies for optimal service life and lasting reliability.
The pluses
Achieving greater productivity and cost-efficiency than a dedicated crew of workers with chainsaws and chippers, IMH Mulching Heads fully leverage your existing equipment investments by utilizing the excavator, back-hoe or skid steer auxiliary hydraulics to turn your existing machine into a powerful land- clearing tool.
Extra key features
With a low initial cost, single man/machine operation for reduced processing costs and ease of use, the IMH series requires no additional specialized machinery and can be used on multiple machines to deliver a superior return on investment for your mulching applications.
In addition to superior productivity gains, mulching with the Indeco IMH series is also a more environmentally friendly process than conventional burning by putting back unwanted vegetation into the ecosystem as mulch.
This protects newly cleared areas from wind and rain erosion while providing the soil with beneficial microorganisms.
Technical Features
Click an item of the following list to zoom in it
- 1 Multiple V-belt transmission
- 2 Fixed or variable displacement hydraulic motor
- 3 Particular design of the teeth and of the relative holder
- 4 “Bite limiter” wear resistant steel profiles
- 5 Body and components in HARDOX®
- 6 Heavy Duty rotor
- 7 Runners in HARDOX®
- 8 Direct access to the monobloc shaft
- 9 Pressure and flow limiting valve, safety and anti-cavitation valve
- 10 Centralised hydraulic connections, drainage line and greasing points visible to the operator during use
- 11 Interchangeable assembly points
- 12 Direct access to the motor and hydraulic connections
- 1 Direct transmission
EXPLORE OUR
MULCHING HEADS
610 mm
45 ÷ 60 l/min
55 l/min
765 mm
65 ÷ 95 l/min
75 l/min
765 mm
90 ÷ 110 l/min
95 l/min
765 mm
90 ÷ 120 l/min
105 l/min
915 mm
90 ÷ 120 l/min
105 l/min
1120 mm
110 ÷ 150 l/min
135 l/min
1065 mm
170 ÷ 245 l/min
210 l/min
1270 mm
105 ÷ 150 l/min
115 l/min
1450 mm
105 ÷ 150 l/min
150 l/min
Accessories
A set of accessories and special components to complete our tools in order to meet all of your possible needs.
Indeconnect
The ‘Indeconnect’ system consists of a device equipped with 4G technology for a wireless connection to the network, to be mounted on the equipment, and a cloud-based web platform you can access from mobile devices (with an app) or from PC, that lets you view the data transmitted in real time by each installed device: working hours, working position in space, hydraulic oil temperature, ambient temperature, GPS position, and more.
Close
The cutters
Multi-purpose cutter
A heavy duty tool recommended for all types of mulching applications. It is highly productive for the mulching of shrubs, small-diameter tree trunks, bushes and branches. The operator is ensured an excellent combination of productivity and longevity of the high-performance cutter.
Cobra cutter
A forest mulching tool for extremely heavy duty use, recommended for work in more demanding applications in the case of the prevalent presence of harder long-fibre woods, stumps external to the ground and larger diameter tree trunks. The initial surface of the smaller cutter facilitates deeper penetration, while the various lateral profiles of the tool facilitate yielding of the wood fibres and contribute to preventing possible slowing in mulching thicker logs.
Cutter with Tungsten Carbide
Tool with apical insert in Tungsten Carbide for use in special applications, where there is a greater presence of buried stumps, uneven ground, sand, debris or other hard and abrasive materials that could cause the premature wear of traditional steel tools.
The Tungsten Carbide cutter is also recommended in applications where a finer mulch is required.
